Race, Climb and Hit Every Target on Live Ninja Course
Now Run into Light, Sound and Timed Competition
NinjaTrac by Rugged Interactive is an interactive timing and reaction system that turns a standard ninja or soft play course into a fully tracked challenge. As players move through the course, they tap glowing pods mounted along the route. Each hit is recorded, each miss adds time, and the final pod at the end stops the clock. The result is a fast, motivating test of speed, fitness and accuracy that keeps guests pushing to improve their time and climb the leaderboard.
RACE THE CLOCK AND HIT THE LEADERBOARD
NinjaTrac focuses on one clear game that everyone understands immediately. Players start their run at the touchscreen kiosk, enter their name and get ready. When the game begins, they move through the course, hitting every pod that lights up along the way. The final red pod at the end stops the timer and locks in their result.
All pods for lane one light green and, if a second lane is installed, lane two lights blue. Any pod that is missed adds a ten second penalty to the final time, so accuracy is as important as speed. At the end of the run, the big display shows the player’s time and position. The integrated leaderboard screen tracks the best runs of the day, the week and all time, creating a simple reason for visitors to return and try to beat their previous score.
The system is controlled by a central control box with hub boxes feeding pods along each lane. Everything is designed for indoor use, high throughput and easy daily checks by staff so NinjaTrac can run throughout the day with minimal downtime.
Would you like to add this timed ninja challenge to your park, gym or play center, contact Exergame Fitness to learn how NinjaTrac can be integrated into your current course.
NINJATRAC GALLERY

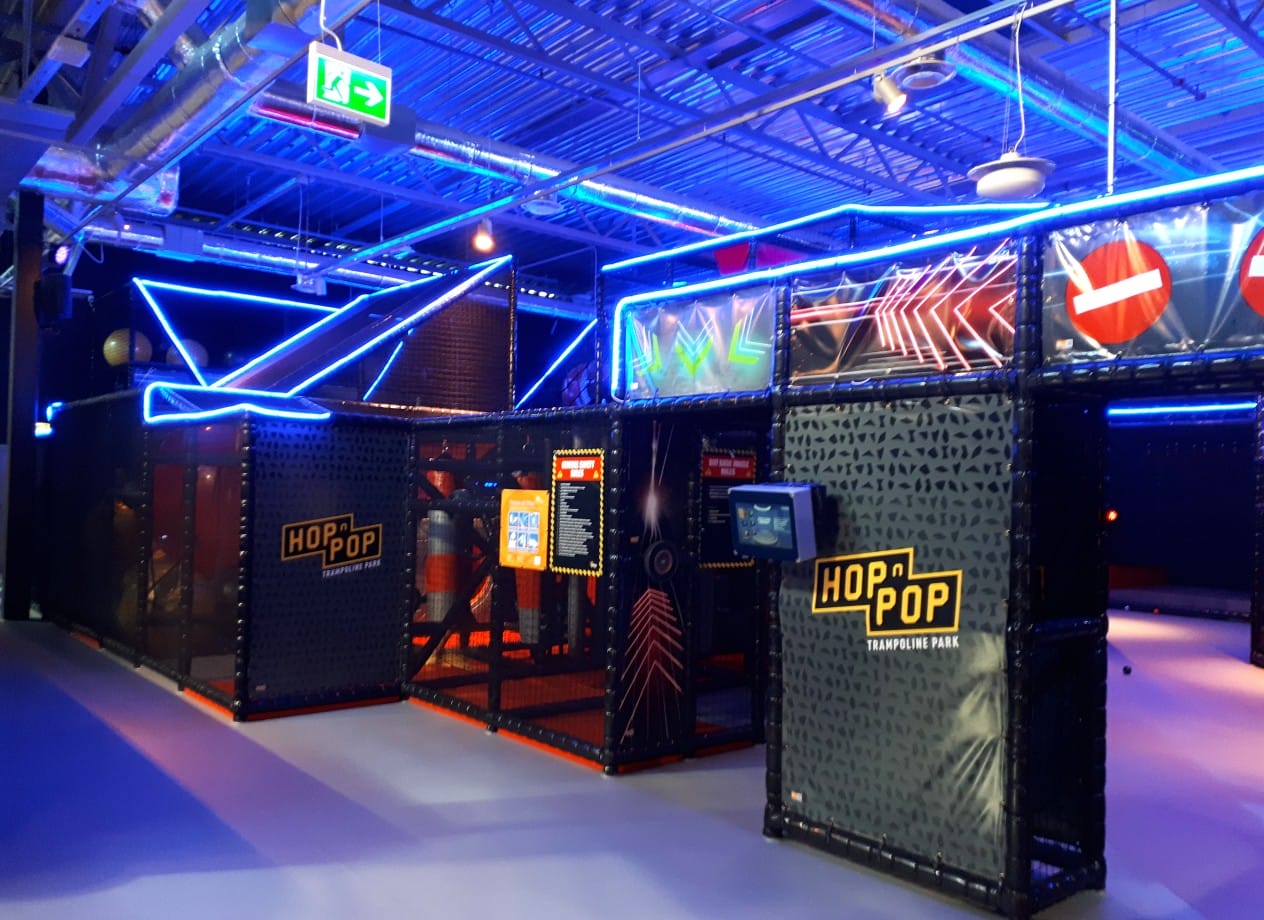

Neon NinjaTrac play zone
A full ninja-style play structure wrapped in dark cladding and bright blue accent lighting, with NinjaTrac graphics and screens drawing attention to the course entrance.

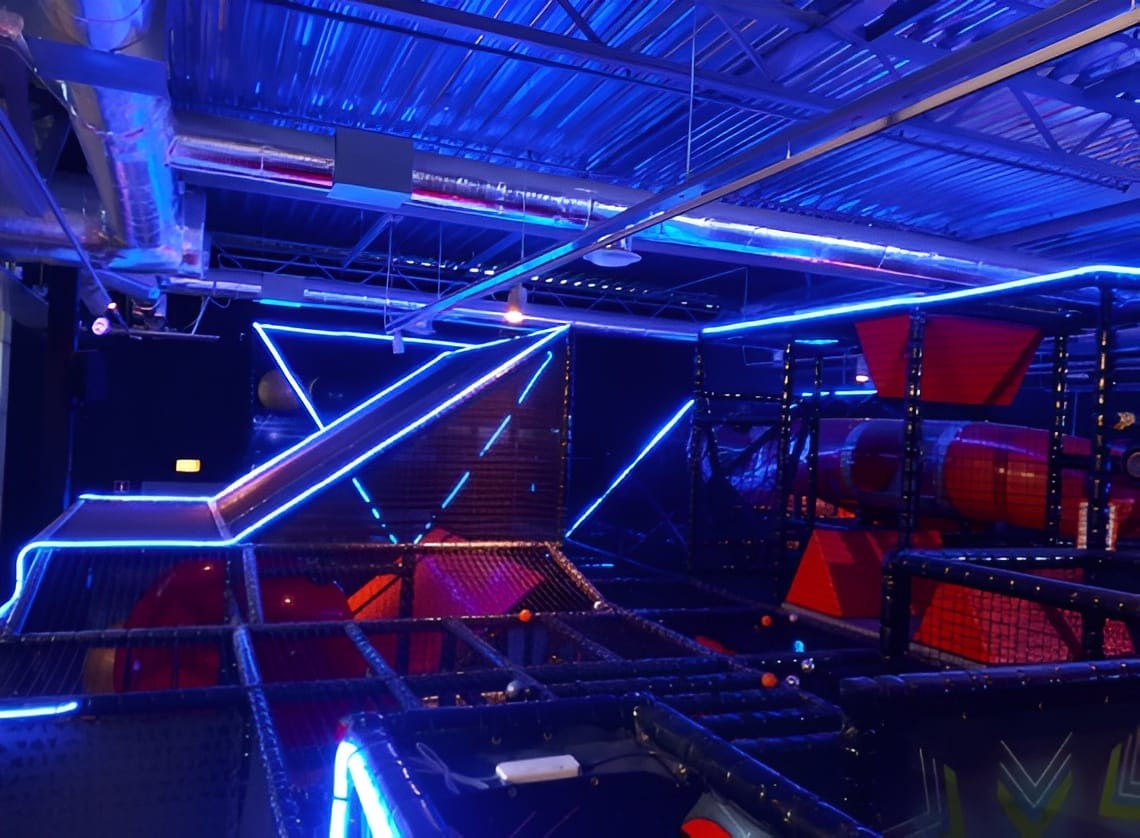

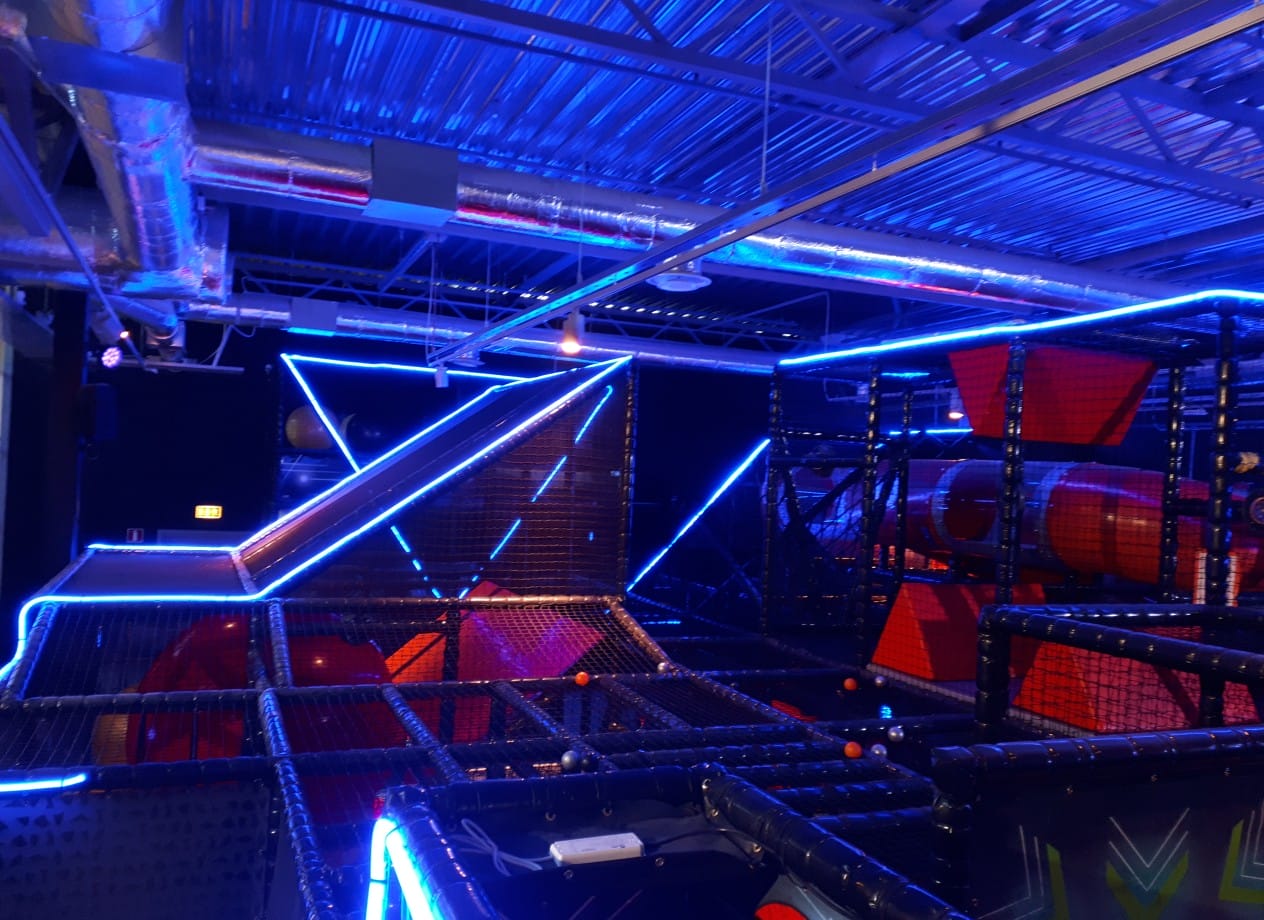

Overhead view of the NinjaTrac course
A high angle look at the structure shows platforms, nets and obstacles outlined with LED strips, highlighting the route players take as they race from pod to pod.

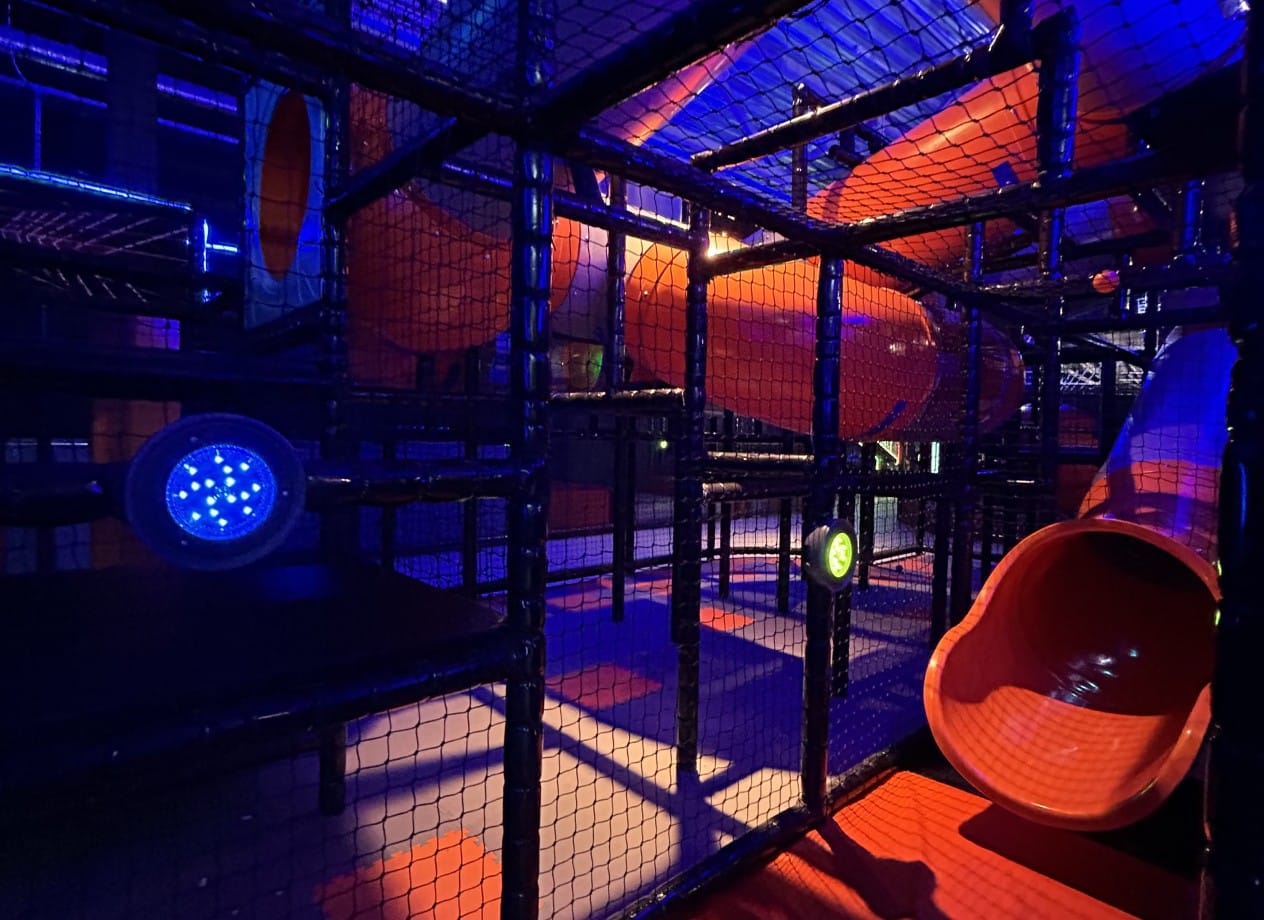

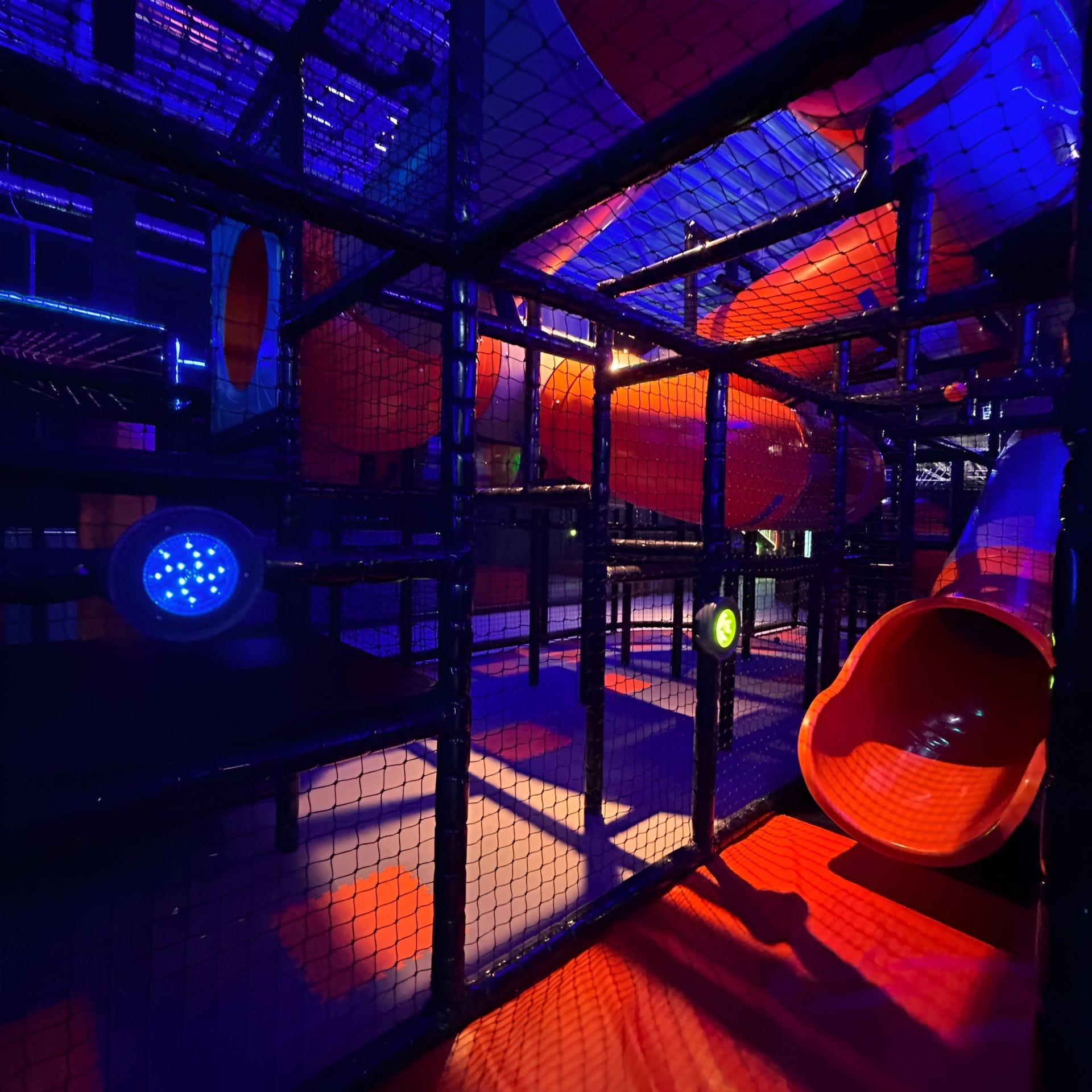

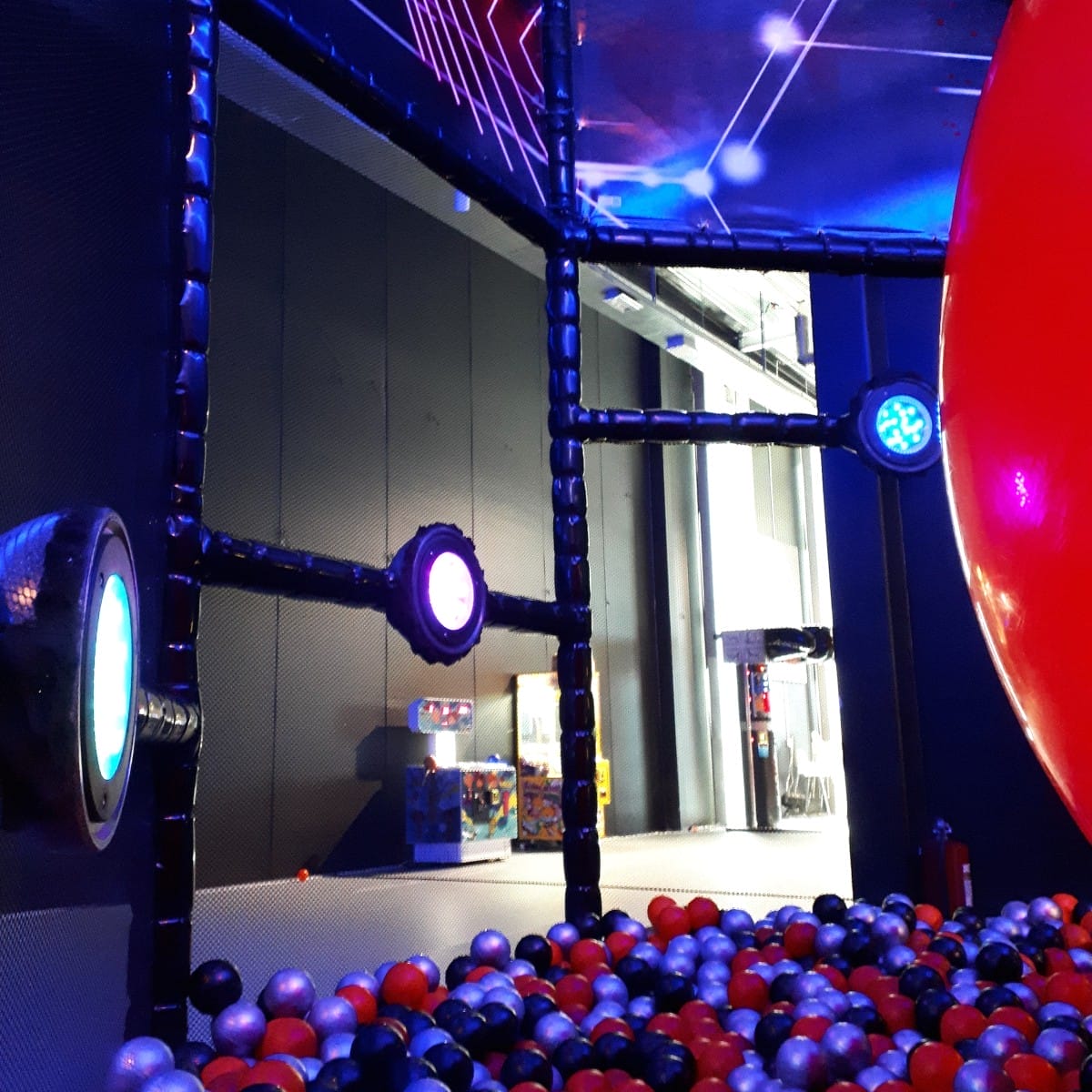

In-lane NinjaTrac pods and obstacles
Inside the play frame, pods are mounted along tunnels and platforms, glowing against red and blue surfaces while players climb, crawl and slide between touch points.

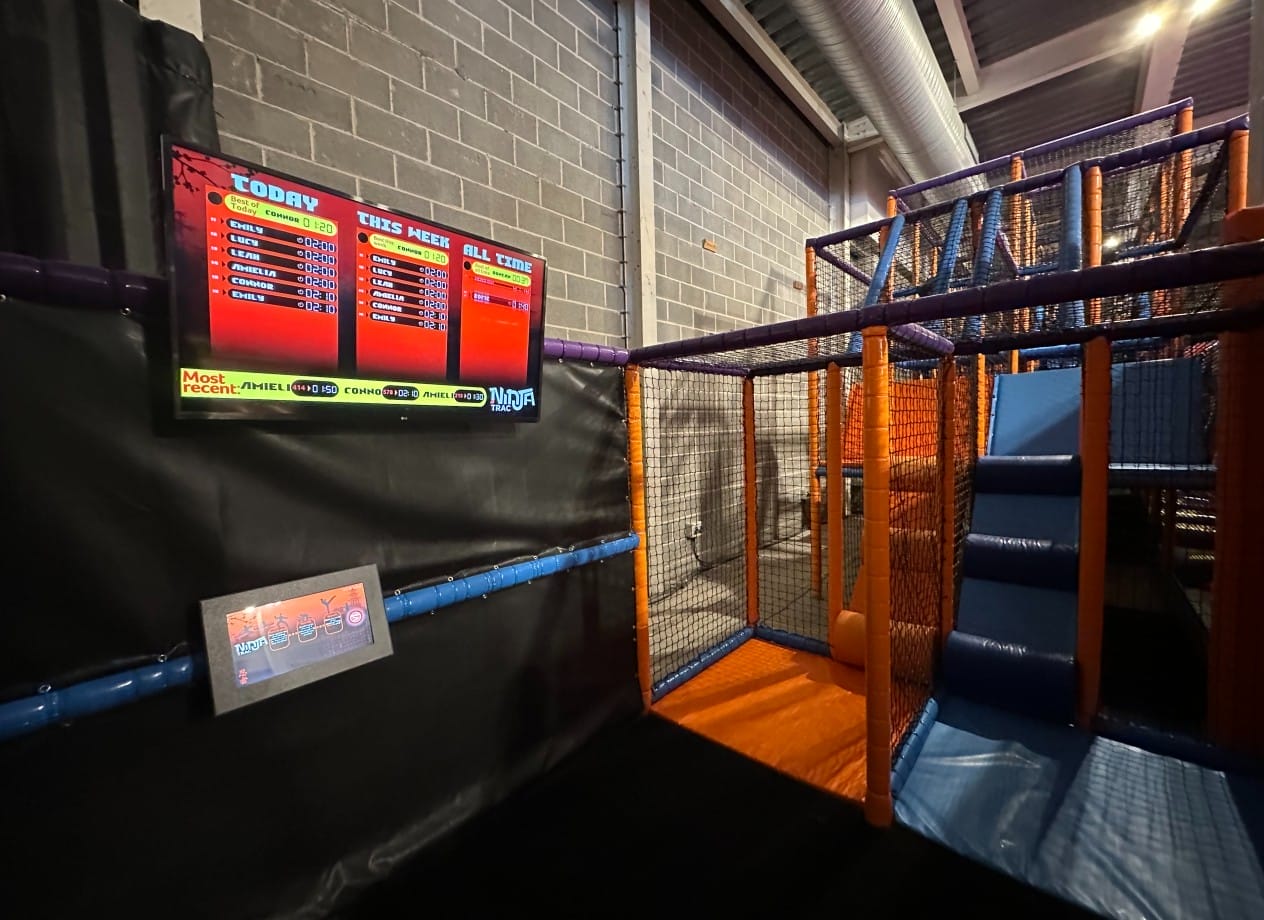

Live leaderboard and course finish area
A wall-mounted leaderboard screen displays current results, with a touchscreen kiosk and final section of the play structure nearby so players can see their time as soon as they finish.
Our philosophy is to create fun, exciting environments where the worlds of technology and fitness intersect.
HOW TO PLAY NINJATRAC

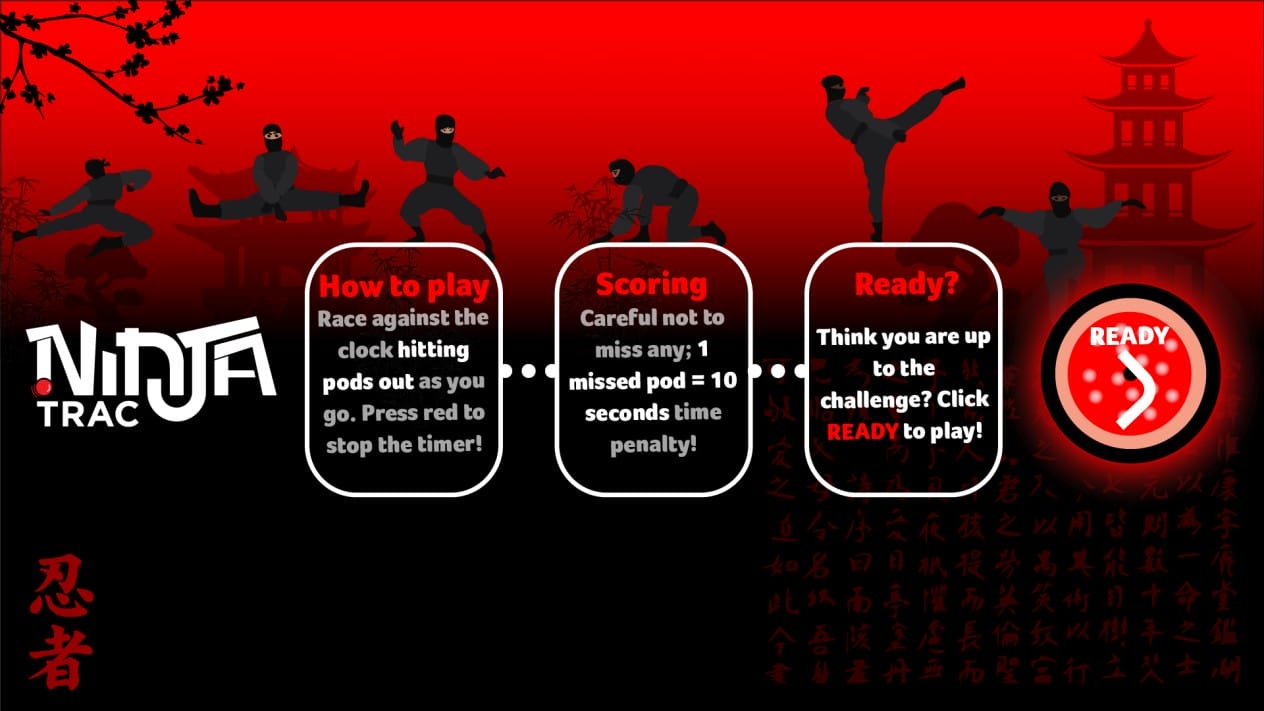

How to play, scoring and ready screen
A themed NinjaTrac instruction graphic walks players through the experience. It explains that they race against the clock, hit pods along the route and press the red finish pod to stop the timer. It also highlights the scoring rule that each missed pod adds ten seconds to their time, then invites them to tap “Ready” to start.

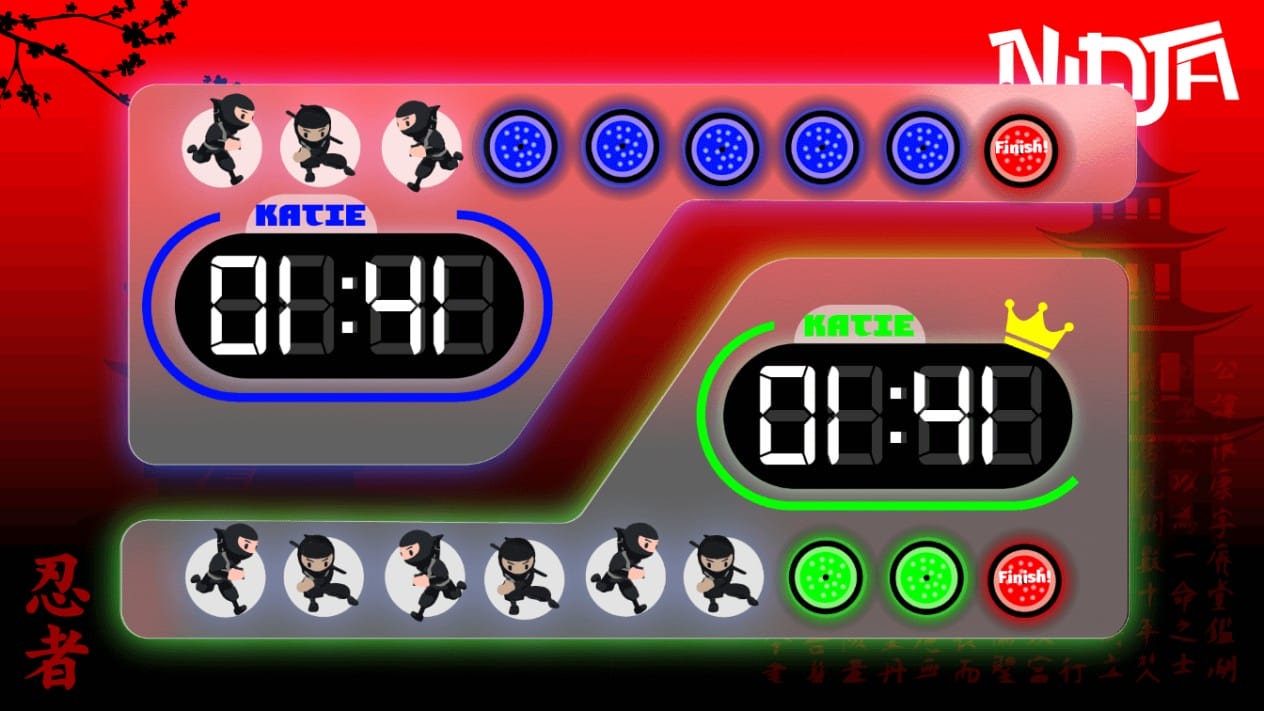

In-game dual lane timing display
A bright digital game screen shows two large timers, one for each player, with ninja icons representing missed pods and coloured lights for active lanes. This makes it easy for guests to see who is ahead while they move through the course.

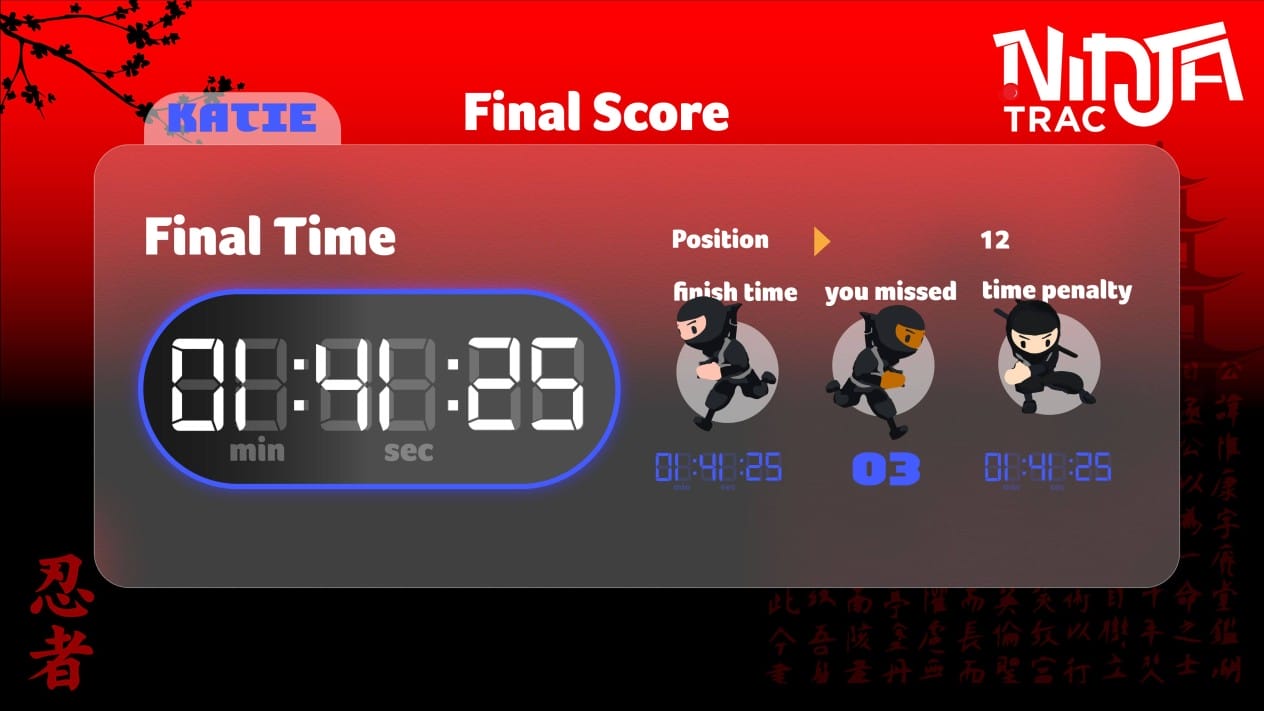

Final score summary screen
At the end of the run, a final score display shows overall finish time, number of pods missed and the total time penalty added. It also shows the player’s position on the leaderboard so they know exactly how their performance compares to others.
PRODUCT SPECIFICATION
Required items
- Standard AC power supply: 110–230 V, 50–60 Hz, 13 A
- Indoor installation only, on a structure capable of supporting both equipment and gameplay loads
- Touchscreen located at the start of the course, within 3 m of the control box
- Large display screen mounted where it can be clearly seen, within 30 m of the control box
- All cables routed safely with support and strain relief to avoid pinching and tripping hazards
Core component
- Pods: circular LED pods with three mounting points, approx. 205 mm diameter and 40 mm deep, 1 kg each
- Control box (hub): approx. 380 x 75 x 380 mm, 6 kg
- Touchscreen box: approx. 450 x 60 x 300 mm, 4 kg
- Large display screen: approx. 1120 x 80 x 650 mm, 10 kg
- 9 pods per lane with numbered CAT5 cables up to 20 m each, plus data and HDMI cabling for screens and hubs
- Active speaker and mounting hardware for audio feedback
Installation and environment
- Mount all equipment to strong structures such as plywood-backed walls or steel-framed play frames
- Avoid plasterboard or unsupported infill panels
- Keep indoors and dry, out of direct sunlight, as bright light can affect pod sensors
- Recommended ambient temperature: 5 °C to 30 °C, avoiding large temperature swings
- Support long cable runs at least every 50 cm and provide strain relief at connection points
Warranty
- 1-year warranty on electronic components
- 3-year warranty on all other parts
KEY FEATURES OF NINJATRAC
-
Interactive timing on a real ninja course :-
NinjaTrac turns a standard ninja or soft play lane into a timed challenge with live feedback, digital scoring and leaderboards that keep guests attractive.
-
Simple, intuitive gameplay :-
Players race along the route, hitting pods that light up in their lane colour and finishing on a final red pod to stop the timer. The rule is easy to remember: every missed pod adds ten seconds.
-
Flexible installation options :-
Pods can be mounted anywhere along the course where cable access is possible, allowing designers to integrate NinjaTrac into new layouts or retrofit into existing structures.
-
Perfect for all ages and abilities :-
Operators can position pods to match the course and typical user height, creating routes that work for children, teens and adults while still providing a real test of speed and coordination.
