Light Up Every Route, Platform and Play Frame
Create Dynamic Color and Atmosphere Across Your Entire Facility
Rugged Lighting is a robust interactive LED system created for busy indoor play and gaming spaces. It wraps your structures with high-impact RGB lighting so every walkway, tower and crawl tube becomes part of the visual experience. From static color themes to pulsing team colors and game-driven effects, Rugged Lighting instantly upgrades the look and feel of your park.
BRING YOUR PLAY STRUCTURE TO LIFE
Rugged Lighting is designed to fit around the frames, posts and walkways you already have. Strips attach neatly to existing steelwork, fencing or upper-level platforms so you can outline routes, highlight entrances or create glowing corridors through your soft play or ninja area. The system runs from a central low-voltage power supply with integrated control electronics. This allows you to color different zones, build custom sequences and synchronise lighting with games and events. All cables are routed behind the lighting tubes and secured with trunking and zip ties so the finished installation looks clean and safe for high-footfall environments.
Now turn your play structure into a fully illuminated attraction, contact Exergame Fitness to learn how Rugged Lighting can be integrated into your facility.
RUGGED LIGHTING GALLERY

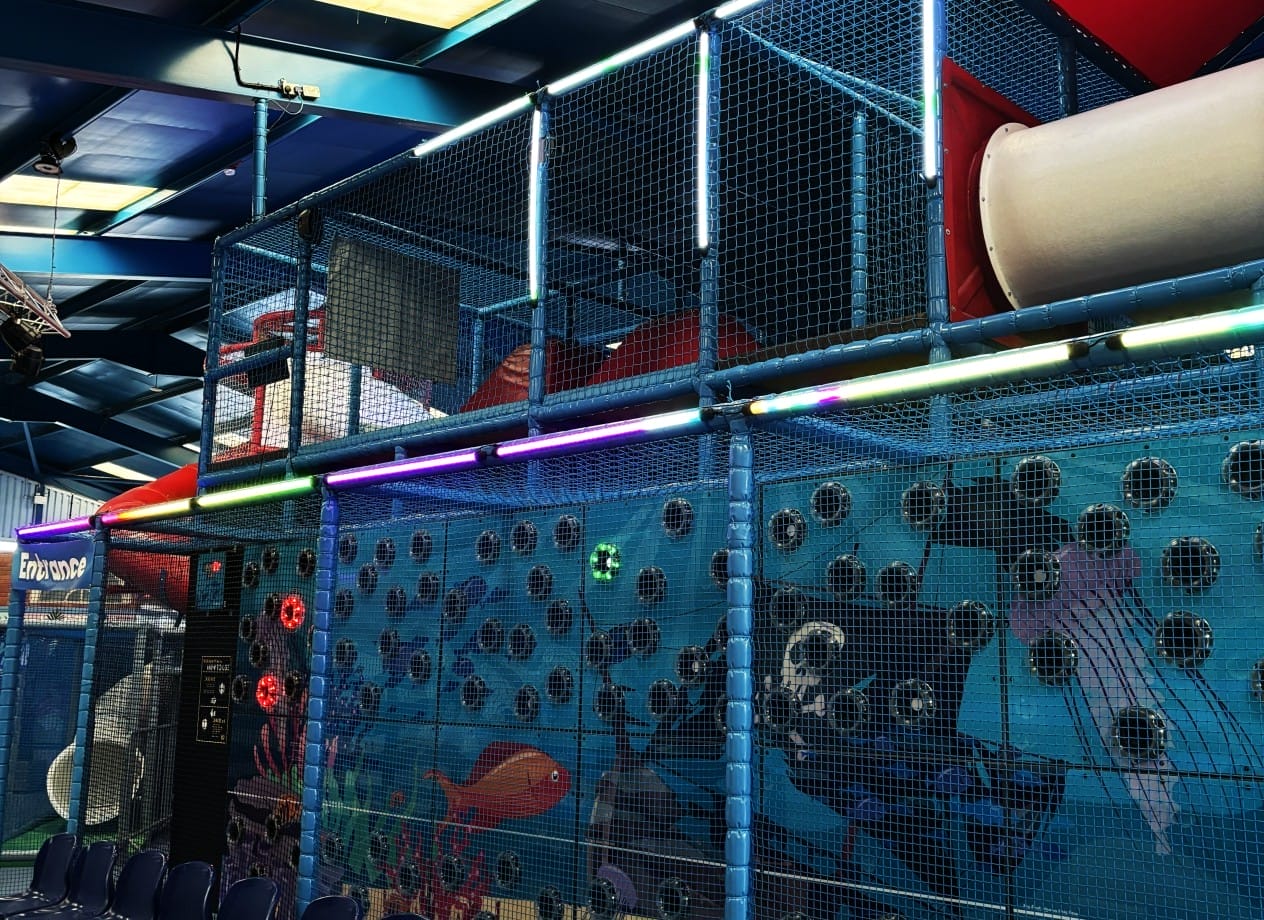

Full play frame installation
A large multi-level play structure lined with vertical and horizontal LED strips, with glowing colors reflecting off themed wall art while parents watch from nearby seating.

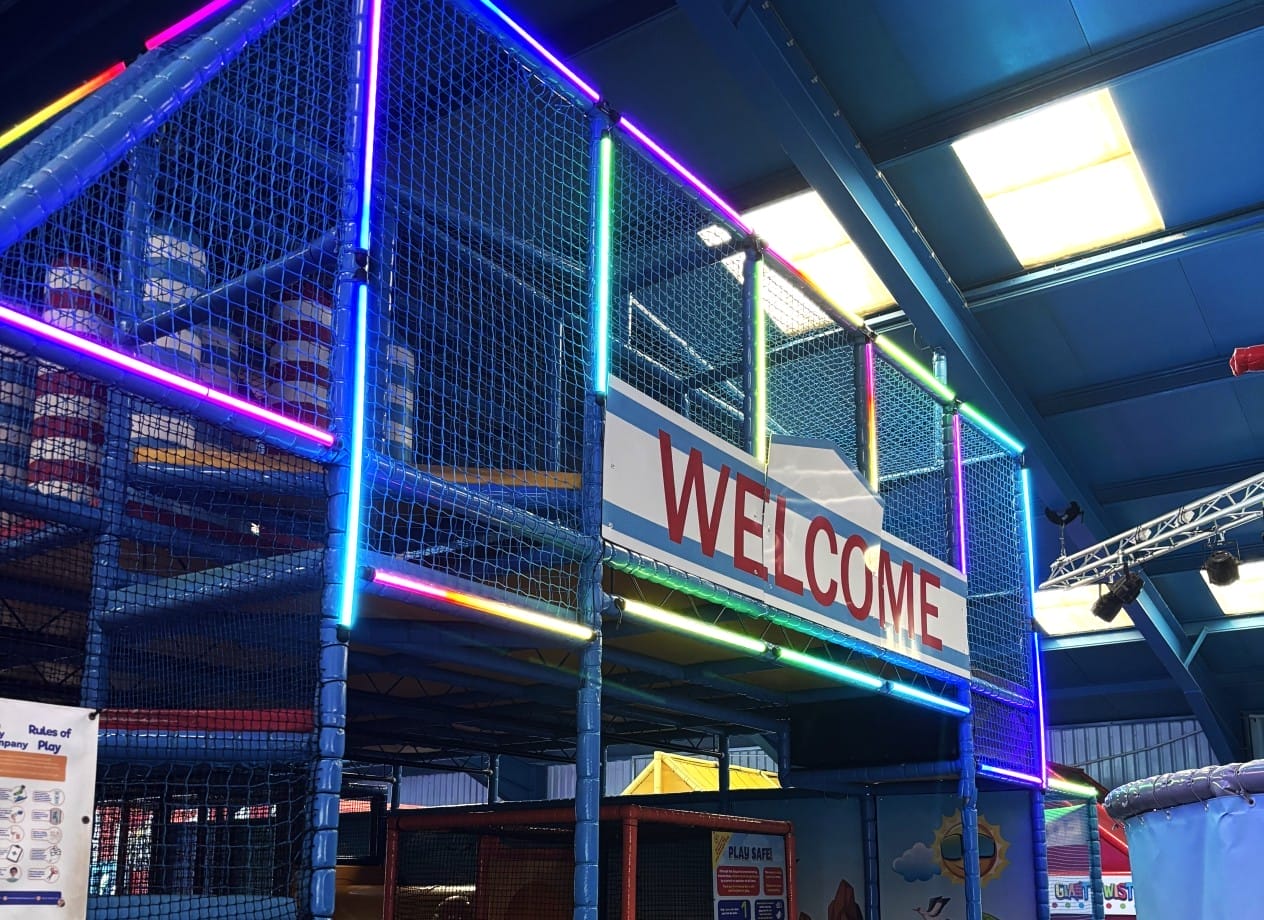

Color-wrapped entrance tower
A “WELCOME” tower framed by bright RGB bars on every edge, creating a striking gateway that draws families into the main play area.

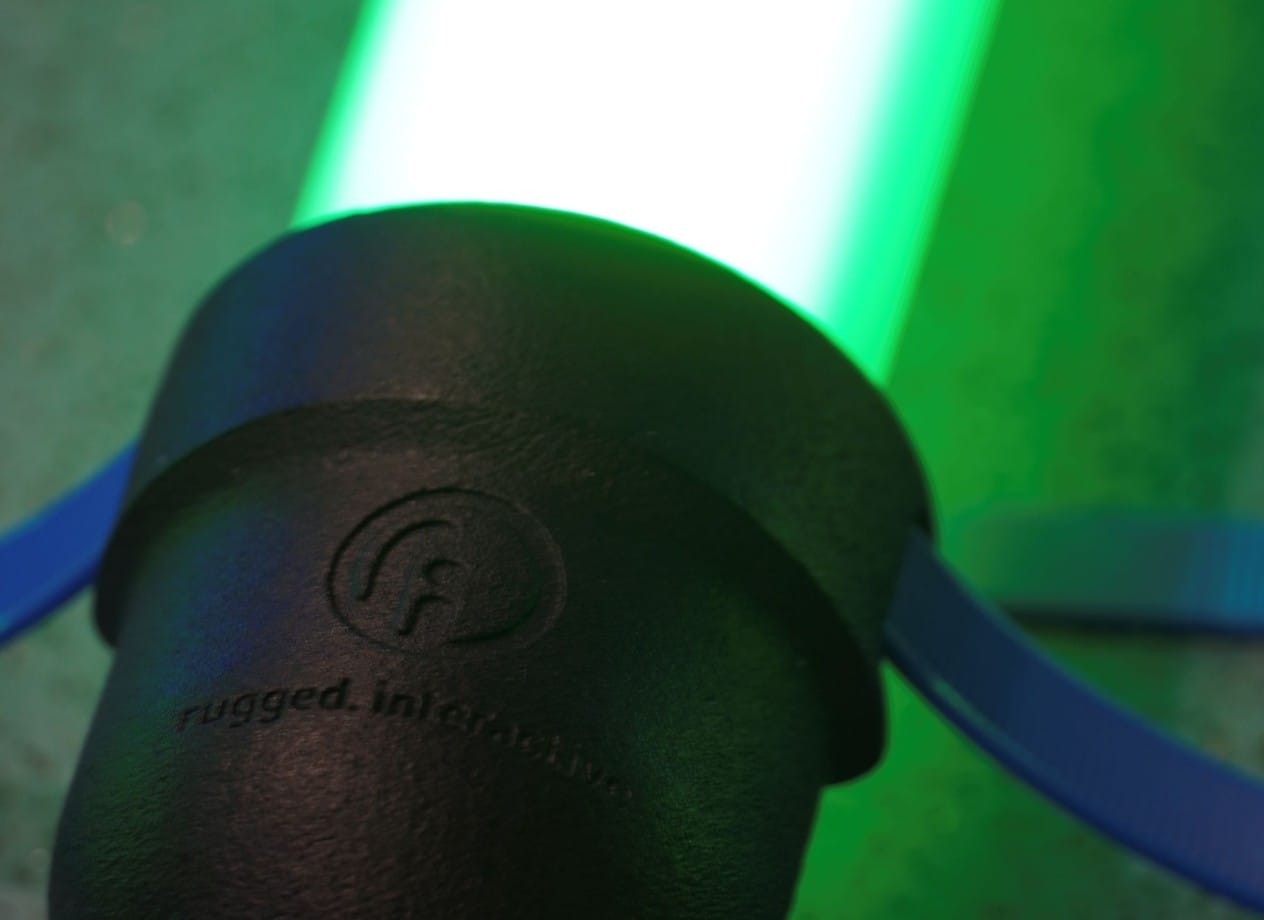

Light tube close-
up
A detailed view of a Rugged Lighting tube glowing green inside its protective housing, showing the sealed end cap and rugged construction.
Overhead frame lighting
Parallel red light tubes mounted neatly along the top rails of a structure, highlighting pathways and edge lines from above.
Our philosophy is to create fun, exciting environments where the worlds of technology and fitness intersect.
PRODUCT SPECIFICATION
Lighting type
- Addressable FCOB RGBIC LED strip
- 720 LEDs per meter for smooth, continuous light
- Supplied in robust PVC extruded tubes in 1.2 m and 2.4 m lengths
Voltage and power
- Input: 230 V AC, single phase, maximum 3.26 A
- Output: 24 V DC, maximum 600 W across connected lighting
Mounting and installation
- Designed to attach to existing structure such as steel posts and frames
- Not intended for user-facing surfaces or positions lower than 2.4 m above the floor
- Cables are enclosed behind the tubing and trunking and secured using zip ties for a neat and safe finish
Compliance and durability
- Compliant with US FCC and UL standards
- Delivered with CE/UKCA and US self-certification packs
- Impact resistance rating: IK08 (BS EN 62262 / IEC 62262) for robust performance in demanding play spaces
Temperature and humidity range
- Operating temperature: -10 °C to +60 °C
- Storage temperature: -20 °C to +85 °C
- Operating humidity: 20% to 90% RH
- Storage humidity: 10% to 95% RH
- Indoor use only
KEY FEATURES OF RUGGED LIGHTING
-
High-impact visual transformation :-
Outline routes, entrances and platforms with vibrant RGB lighting that instantly upgrades the look of your play frame or ninja course.
-
Engineered for demanding environments:-
Impact-resistant tubes, secure mounting and protected cabling make the system suitable for busy commercial venues with heavy daily use.
-
Flexible layouts and easy expansion:-
Use 1.2 m and 2.4 m sections to create custom patterns around posts, ceilings and walkways. Add more runs over time as your attraction grows.
-
Safe, low-voltage operation:-
Central 24 V DC supply and clearly routed cables support safe operation while maintaining strong brightness and color saturation.
